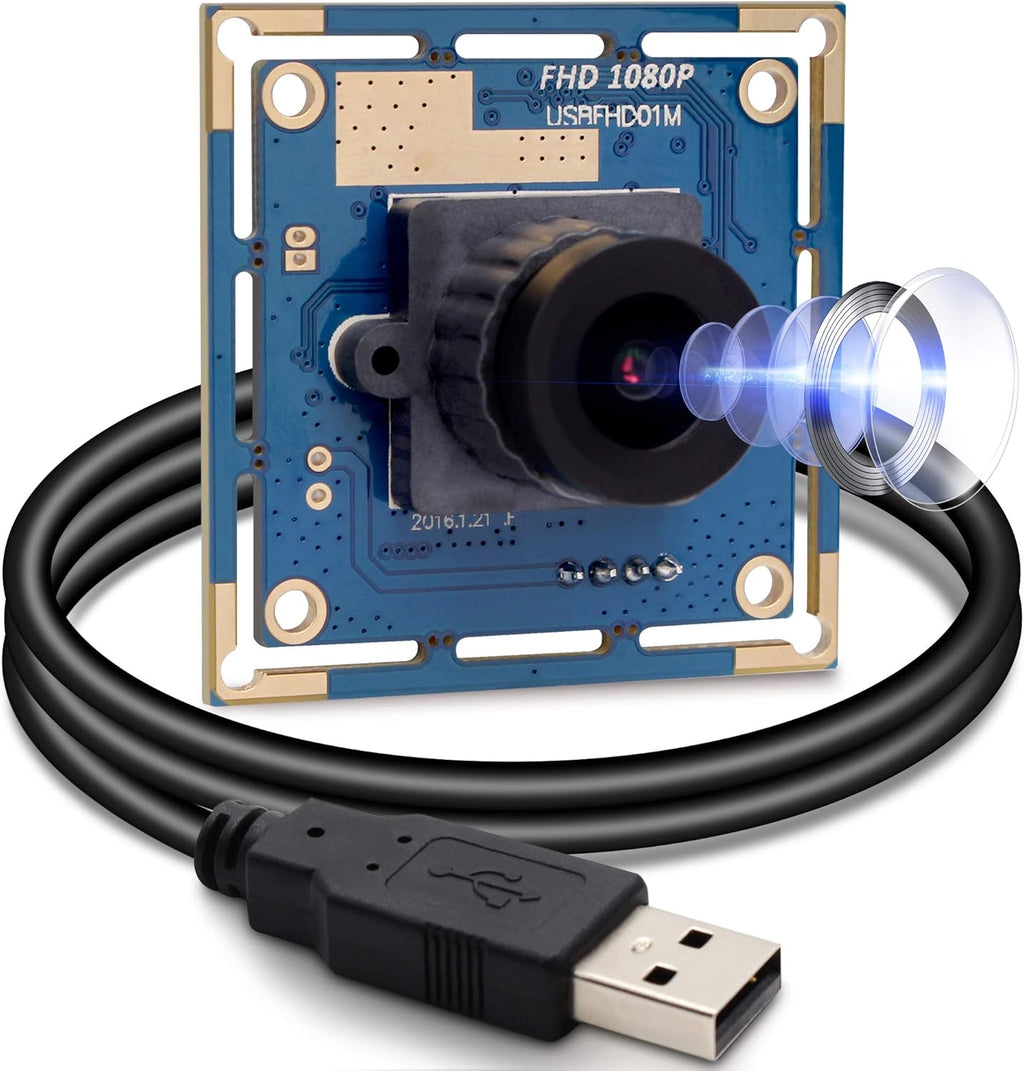

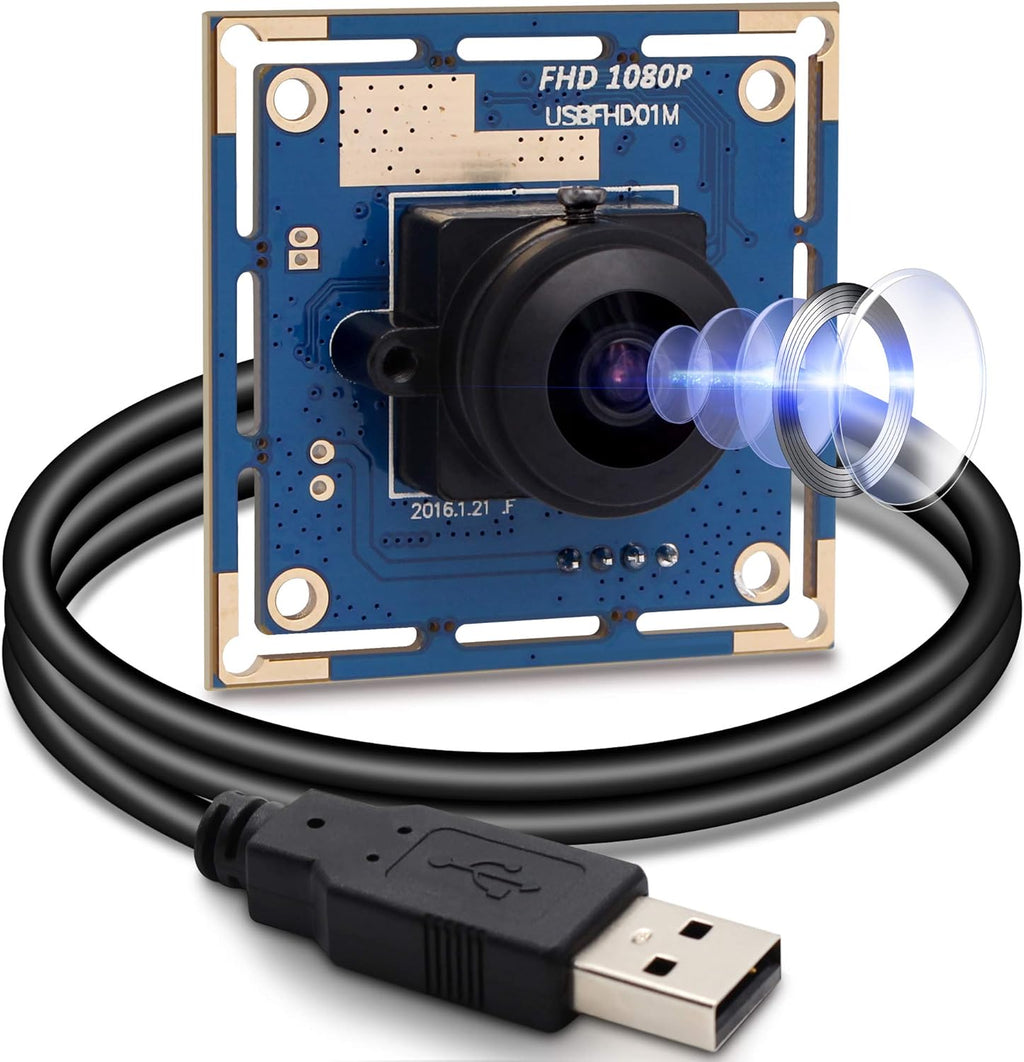

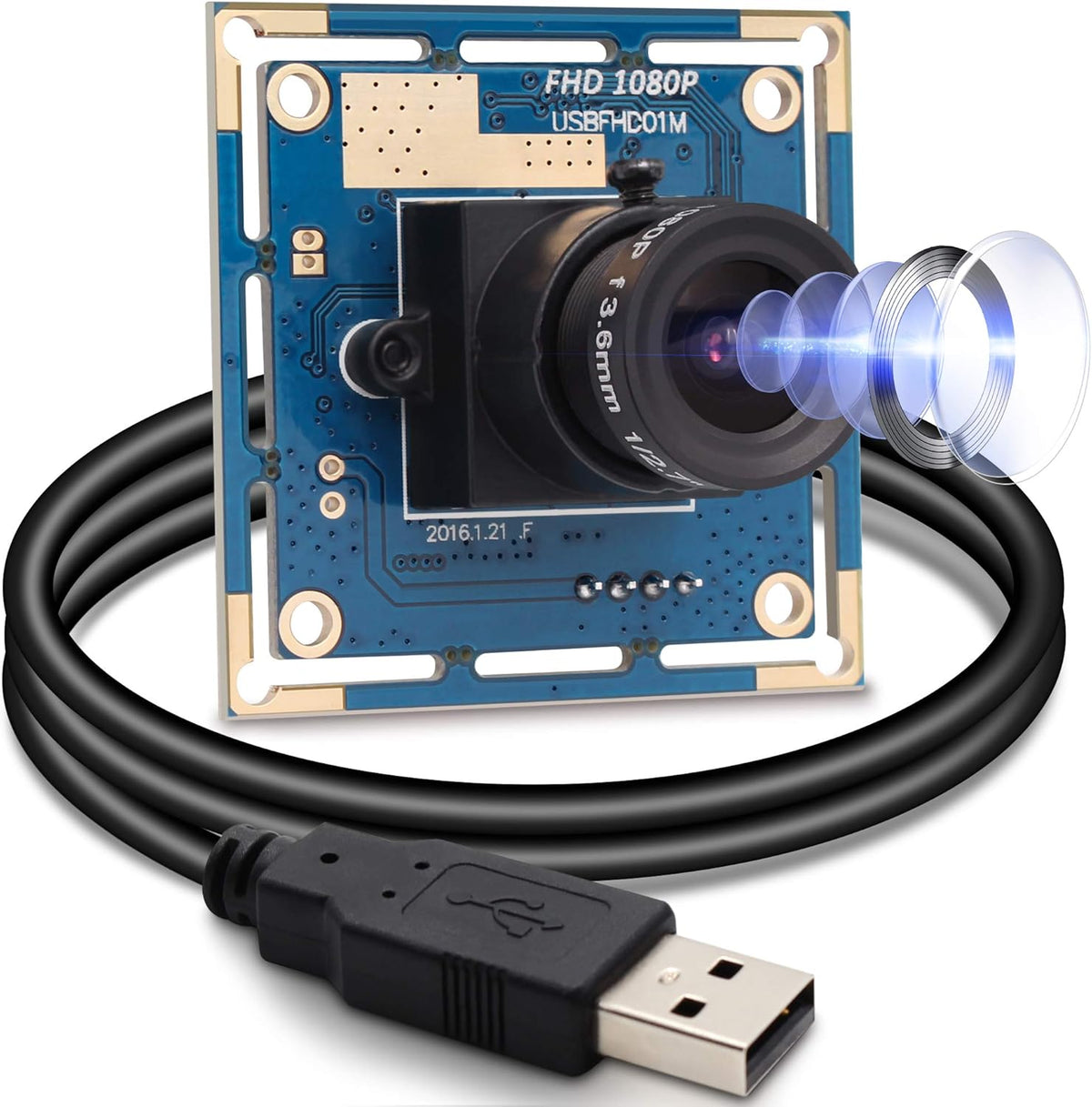

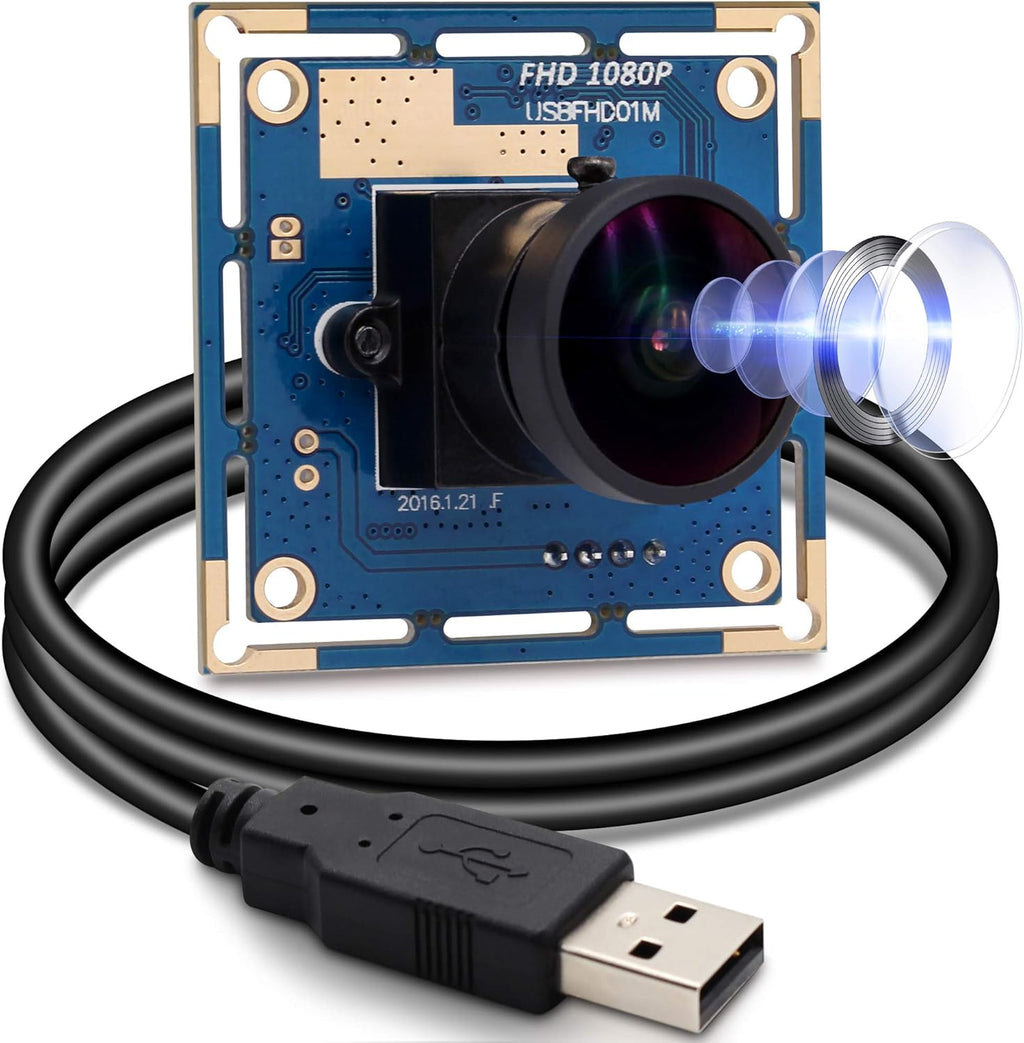

1080P Full HD USB Camera Module 2 Megapixel CMOS Board with 2.1mm Lens D78088
1080P Full HD USB Camera Module 2 Megapixel CMOS Board with 2.1mm Lens D78088
【HD 1080P Camera】1080P Full HD USB Camera Module with 1/2.7' CMOS OV2710 image sensor, a great camera board with high pixel technology for sharp image and accurate color reproduction.
【High Frame Rate】2 Megapixel HD USB camera module has a high frame rate, captures your clips in ture 1080P glory and 30 frames per second, and 720P at 60fps, 480P at 100pfs, this usb camera board delivery decent and smooth image quality while catching moving objects.
【Mini Size for Wide Applications】This 1080P HD USB Web Camera has a mini size only 38x38mm(can cut to 32x32mm), the open structure of this usb camera board is good for embedded project, widely use for picture and recording, smart TV, live streaming, security monitoring systems ect.
【Plug & Play, UVC 】2 Megapixel USB camera module designed with standard UVC protocal USB connector, occupy less bandwidth, great improved the working efficiency. Easy to use usb web camera just play and plug no driver needed.
【Supported Systems 】USB camera module work with Windowns WinXP/Vista/Win7/Win8/Win10/Linux with UVC/Mac-OS X 10.4.8 or later,support OTG protocal and Raspberry Pi
The USB HD 1080P CMOS board camera module make it ideal for many applications such as security systems, portable video system, vidéophones, industrial machine monitoring, and toys.
The USB camera module is ideal for fans, expérimentateurs and to. Car and Boat control applications, electronic equipment, oil, industrial equipment, monitoring Remote Areas, monitoring of equipment.
Used for all kinds of machine as shown below:, All-in-One machine, point of sale equipment, vending machine, safe external, Laptop, videophone, mid, Tablet, evaluated, medical equipment, law enforcement on the ground, sound and simple button, cat-eye system, security system, car, interactive, data logger system education.
Specification:
Sensor: 1/3 CMOS OV2710
The size of the lens, 200 W, 2.0Megapixel, 1920 (H) x1080 (V) pixels Max.
Resolution: 1920 x 1080
Image Format: MJPEG
USB protocal: USB2.0 HS/FS, USB1.1 FS
Support driver free, USB video class (UVC) 1.1
Exposure: Auto AEC: Support
Auto White Blance AEB: Support
Frame Rate: H.264 30fps @ 1920 (H) x1080 (V) MJPEG 60 fps @ 1280 (H) × 720 (V)
Adjustable parameters: brightness/contrast/color Saturation/definition vision/Gamma/WB
30-150 level of tension Optional
DC 5 V; Current: 150mA
Temperature: -20 ~ 70 (degres)
Sheet Size (Optional): 38x38 mm (default), 32
Support OS: Windows XP/Vista/Win7/Win8/Linux with UVC 'Mac OS X 10.4.8 or later/WinCE with UVC/Android 4.0 or above'
Fast frame for high speed moving, 30fps@1080p, 60fps@720p, 100fps@VGA.
Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps
